FXR-240

FXR-240 Ceiling Mounted Dehumidifier Core Parameters & Application

  • Circulating Air Volume: 2500m³/h
  • Daily Dehumidification Capacity: 240 Liters/Day
  • Recommended Coverage Area: 150-200㎡
  • Wide Application Scenarios: Archives, underground parking garages, swimming pools, cultivation greenhouses, pharmaceutical preparation rooms, laboratories, large underground shopping malls, large warehouses and other commercial & industrial constant humidity spaces.
ENQUIRY!
Category:
Description

Parameter Item
Model FXR-240
Body Dimensions 1100×880×690mm
Inlet Size 630×520mm Square
Outlet Size 630×520mm Square
Daily Dehumidification Capacity 240L/Day
Net Weight 115kg
Power Supply 380V/50Hz
Applicable Ambient Temperature 5~38℃
Recommended Coverage Area 150-200m²
Input Current 6A
Input Power 3.0KW
Circulating Air Volume 2500m³/h
Control Method 86 Box Wall-Mounted Controller
Drainage Method Direct Hose Drainage
Operating Noise 60 dB(A)
Compressor Type High-Performance Reciprocating Compressor
Sensor Hokuriku, Japan
Defrosting Method Automatic Defrosting
Protection Function 3-Minute Delay Start Protection

Internal Structure Cutaway 3D Render
Unlabeled cutaway 3D render of Fengxing FXR-240 heavy-duty ceiling ducted dehumidifier, showing large evaporator, condenser, industrial fan and reciprocating compressor internal layout

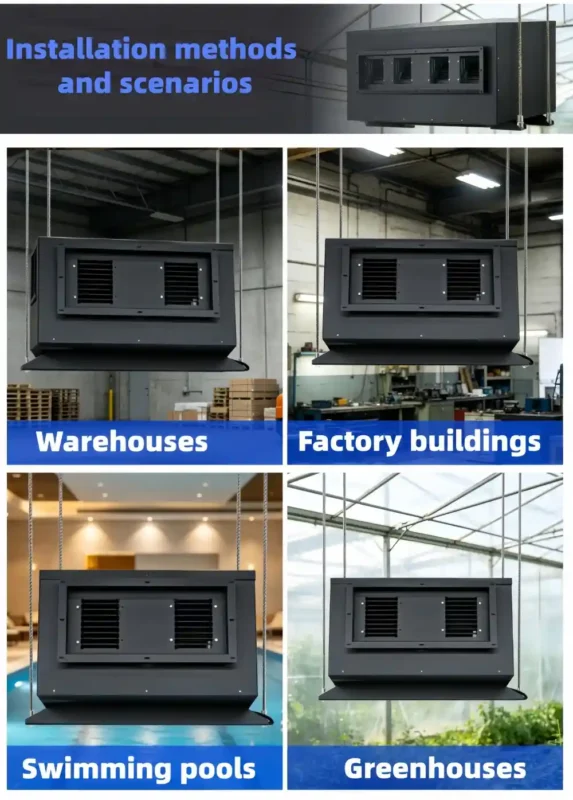

Installation & Application Scenario Diagram
Labeled cutaway installation diagram of Fengxing FXR-240 large ceiling dehumidifier, display suspension installation structure, suitable for factory, warehouse, indoor swimming pool and agricultural greenhouse constant humidity projects
